I. Introduction:

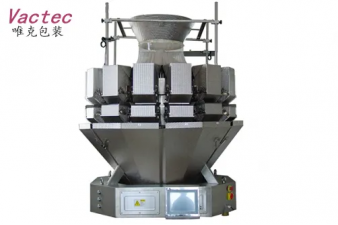

This is multi-head combination weigher. Including center panel feeder, linear feeder, receive hoppers, weighing hoppers, discharge hopper etc.
It is suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts;
*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
* Facility to maximize or minimize the operation angle to the size of the product.
* Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select..
Options: Dimple Plate/Timing Hopper/Printer/Reject Device
II.Application
III.Technical information:
|
Model |
Scale No./Hopper size |
Weighing Range |
Filling speed |
Accuracy |
|
ZH10-1.6L |
10 head/1.6L |
10-1000g |
Max 65time/min |
X (0.5) |
|
ZH10-2.5L |
10 head/2.5L |
10-1000g |
||
|
ZH10-5L |
10 head/5L |
100-3000g |
Max 50times/min |
X (1) |
|
ZH14-1.6L |
14 head/1.6L |
10-1500g |
Max120bags/min |
X (0.5) |
|
ZH14-2.5L |
14 head/2.5L |
10-1500g |
||
|
ZH14-5L |
14 head/5L |
100-3000g |
Max 80 times/min |
X (1) |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
