I. Introduction:

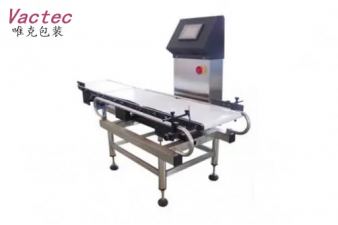

1)This machine is suitable for weight inspection of already packaged goods; it displays the weight of the goods and eliminates automatically the unacceptable goods. With Automatic reject device . Made in 304 Stainless steel.
2) with function of over 10 different production setting memory, automatic No-qualified production reject, automatic production classification and counting, automatic weighing signal feedback, etc.
3)It can be connect with PC to down load the production information.
4)This machine can be installed with JST2000 Metal Detector to be a complete packaging line, and also can be used alone.
II. Machine Configuration:
1. Weview Color Touch Screen;
2. HBM DIGITAL LOAD CELL；
3. TAIWAN MOTOR；
4. SKF BEARING;
5. AIR TAG VALVE;
III. Technical Information:
|
Model |
Weighing station size |
Subject size mm |
Weighing range |
Speed Times/min |
Weight Accuracy |
Reject type |
|
CJB300 |
300mm*220mm |
Max 250*200 |
20-500g |
Max 120 |
+/- 0.5-1g |
Air blow |
|
CJB400 |
400mm*300mm |
Max 350*250 |
50-2000g |
Max 100 |
+/- 0.5-1.5g |
Pneumatic Pushment |
|
CJB600 |
600mm*400mm |
Max 500*350 |
0.5-5kg |
Max 80 |
+/- 1-5g |
|
|
CJB30K |
1000mm*600mm |
Max 850*550 |
5-50kg |
Max 20 |
+/- 5-25g |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
