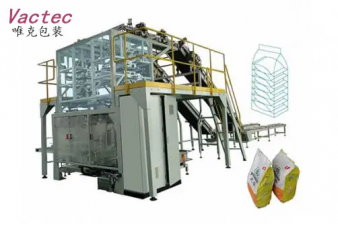

I.Introduction
This machine is mainly to complete putting the packaged pouch products by request neatly into bag .sewing bag out of the automatic packing process. And realize filling small bag into bags automatically .So saving manpower ,material and financial inputs reducing production costs .Improving production efficiency .The unit is widely used in washing powder,salt ,seeds milk powder and other powder granular industries .It is the first choice for customers.
II. Advantages :
1 This packing unit can realize bag feeding bag open counting filling moving output sewing fully automatically
2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .
3 Can be arranged to achieve a variety of forms to meet different needs of customers
III. Production process:

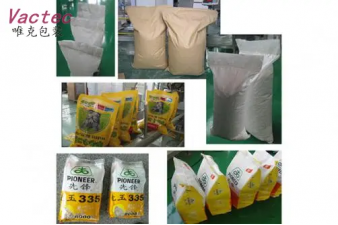

For secondary packaging (auto putting the small sachets into big plastic bag):
Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement → the small sachets will load into the bagging machine → bagging machine seal and cut the big bag → belt conveyor will take the big bag under the packaging machine.
IV.Technical parameters:
|
Model |
Baling type |
Working station |
Pouch size/weight |
Pouch speed (pouch/min) |
Big bag Speed (bags/min) |
Big bag type/Material |
|
GR-PD |
1 or 2 columns, Flat laying |
single |
250g-3kg; (2 columns) 3-5kg; (1 column) |
Max 80 Max 50 |
Max 12 |
Flat/ Gusset type PP Woven bag |
|
GR-PD3 |
3 columns, Flat laying |
single |
250g-1.5kg |
Max 80 |
Max 12 |
|
|
GR-PS |
1 or 2 columns, Flat laying |
Double |
250g-2kg |
Max 160 |
Max 24 |
|
|
GR-SD |
1 or 2 columns, standing laying |
single |
1-3kg |
Max 80 |
Max 12 |
|
|
GR-S500 |
3 columns, Flat laying |
single |
500g |
Max 120 |
Max 12 |
|
|
GR-S3000 |
1-2 columns, Flat laying |
single |
1-3kg |
Max 60 |
Max 12 |

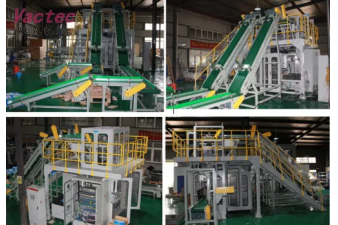

IV. GR -PD secondary packing machine for Argentina customer
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
|
Efficient Service |
|
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
|
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
|
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.
Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.
Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
