I. Introduction

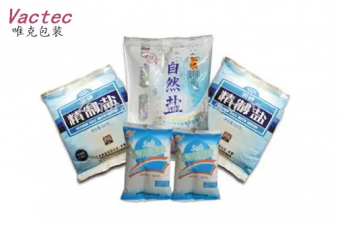

This unit is for granule/powder products automatic bag making, material weighing & Filling, sealing, date coding etc. Including bellowing machines:
1.Material feeding elevator;
Made of Stainless Steel 304 material, automatic feeding, equips level switch and control box.
2.LB cup filler;
This machine can automatic realize functions of metering, filling and controlled by packaging machine. Made by Stainless Steel.

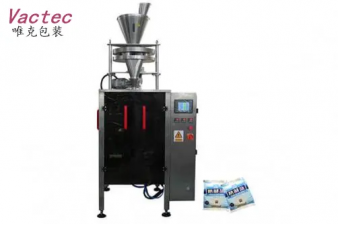

3.VFFS series bagging machine (film fulling and horizontal seal all control by servo motor )
This machine equips with bag-making,cutting,code printing,etc.to make pillow bag .SIEMENS PLC and Touch Screen,Japanese Panasonic servo motor, Japanese Photo Sensor,Korean Air valve,etc. Stainless Steel for body.
4.Take off conveyor belt.
Made by Stainless Steel. 1.95m for the length.
II.Technical information:
Model |
Cup Filler/Dosing system |
Bag type/ Bag Material |
Roll Film width |
Bag size:(mm) |
Packaging speed |
VFS320 |
LB200 |
Pillow/gusset type bag; LDPE/ Laminated Roll film |
Max 320mm |
W(60-150)*L(80-180) |
Max 70BPM |
VFS420D |
LB500 |
Max 420mm |
W(80-200)*L(80-280) |
Max 70BPM |
|
VFS540B |
LB1000 |
Max 540mm |
W(120-260)*L(80-340) |
Max 50BPM |
|
VFS730B |
LB1000/LB2000 |
Max 730mm |
W(150-350)*L(120-460) |
Max 50BPM |
|
VFS780B |
LB2000 |
Max 780mm |
W(150-375)*L(120-460) |
Max 40BPM |
|
VFS1100 |
LB15K |
Max 1100mm |
W(300-535)*L(300-650) |
Max 10BPM |
|
VFSH540 |
LB500/LB1000 |
Quad/Pillow Bag. Laminated roll film |
Max 540mm |
Front width: 50-190; Side width: 35-90; Edges seal:5-8; bag length:120-340; |
Max 50BPM |
VFSH730 |
LB1000/LB2000 |
Max 730mm |
Front width: 60-260; Side width: 45-120; Edges seal:5-8; bag length:120-460; |
Max 50BPM |
Note:
LB200/LB500/LB2000/LB15K: Cup filler;
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
Efficient Service |
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.
Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.
Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
