I. Introduction:

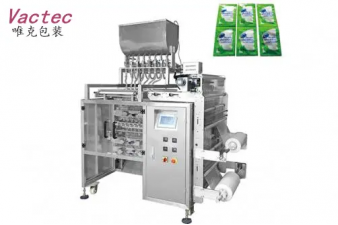

This packing system can finish the whole packing process automatically, includes feeding, measuring, filling, bag making, date printing,sealing,cutting,counting,finished product conveying.
II.Feature:
(1). Servo motor for controlling auger filler
(2).Double servo motors for film drawing down system;
(3).PaAutomatic film rectifying deviation function;
(4). Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
(5). It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
III. Technical Parameters:
Model |
ZR1100K-8 |
Capacity |
Max.30bags/min/lane |
Bags size |
Length: 45--120mm Width: 35--120 mm |
Film width |
Max.1100 mm |
Film thickness |
0.05-0.10mm |
Air consumption |
0.8Mpa 0.8m3/min |
Power source |
1N+PE/50HZ/AC220V/7KW |
Dimension |
L1615 x W1886x H2150mm |
Weight |
700kg |
IV. Machine configuration list
Configuration list |
||
No |
Components |
Standard configuration |
1 |
Control parts: |
Brand name/Origin |
1) |
Touch screen |
Wenview/Taiwan |
2) |
PLC |
Mitsubishi/Janan |
3) |
Servo driver |
Schneider/France |
4) |
Transducer |
Jintian/China |
5) |
Temperature controller |
Nuohai/China |
2 |
Pneumatic parts |
|
1) |
Horizontal sealer cylinder |
Airtac/Taiwan/CHSFC |
2) |
Vertical sealer cylinder |
Airtac/Taiwan/CHSFC |
3) |
Film-pulling cylinder |
Airtac/TaiwanCHSFC |
4) |
Cutter cylinder |
Airtac/Taiwan/CHSFC |
5) |
Solenoid valve |
Airtac/Taiwan/CHSFC |
6 |
Triplet |
Airtac/Taiwan/CHSFC |
3 |
Low-voltage parts |
|
1) |
DC power |
Mingwei/China |
2) |
Solenoid valve |
FOTEK/Taiwan |
3) |
Middle relay |
Omron/Japan |
4) |
Voltage stabilizer |
Donglin/China |
4 |
Sensor |
|
1) |
Proximity switch |
AUTONICS/Korea |
2) |
Optoelectronic switch |
Shiwei/China |
3) |
Color code optical fiber |
AUTONICS/Korea |
4) |
Counting optical fiber |
RIKO/Taiwan |
5 |
Drive part: |
|
1) |
Servo motor |
Schneider/France |
2) |
Stepping motor |
Qili/China |
3) |
Reduce motor |
VTV/China |
4) |
Asynchronous motor |
Zhaoqing/China |
6 |
Other parts: |
|
1) |
Power cable link |
Aopulong/China |
2) |
Ribbon printer |
Dingsheng/China |
Note: Above components are pass the CE certification |
IIV. Technical Parameters
Model |
Weigher/Filler/Dosing system |
Lane Qty. |
Sachet type |
Sachet size:mm |
Packaging speed |
Weight Accuracy |
VMF480 |
Cup (for granule); pump(for liquid & sauce); Auger filler(for powder) |
2-6 lane |
4 side seal |
L:45-120; W:35-120 |
Max 40BPM/lane |
+/- 1-2% |
VMF720 |
4-10 lane |
L:45-120; W:35-120 |
||||
VMF960 |
6-12 lane |
L:45-120; W:35-120 |
||||
VMP280 |
2-6 lane |
Pillow |
L:50-180; W:20-60 |
Max 35BPM/lane |
||
VMP560 |
4-12 lane |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
Efficient Service |
|
Documents |
English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom. |
Guarantee |
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning. |
Service |
We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time. |
Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.
Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.
Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
