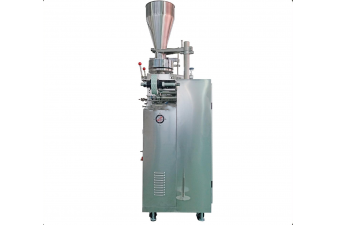

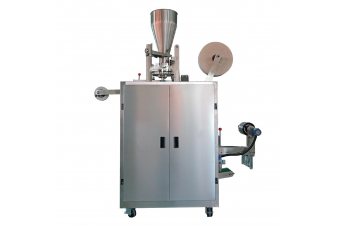

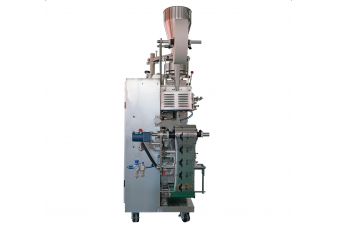

DXDT-169 Tea bag packing machine with outer envelope

Characteristic

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.

2、Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.

3、The temperature controller is adjusted by PID to make the temperature control more accurate.

4、Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products

5、Packing material：filter paper, thread, composite membrane and labels.

Sealing Type

Three sides sealing

Technical Parameters

Measuring Scope：3 - 10 g（ 1.6 ~ 26 ml ）

Inner bag size：L ：50 - 70 mm   W：45 - 80 mm

Outer bag size：L ：80 - 120mm   W  ：75 - 95 mm

Packing Speed：30-40 bags / min

Dimension ( L*W*H )：1750*740*1950mm

Weight：550 kg

Total Power：AC220V/ 50Hz /3.7kw

Gas source：≥0.4m³/min

Optional Equipment

Coding machine

Sample bag: ( 90mm*80mm)

Cotton thread length: 17cm;

Tag size: 20mm*20mm;

Envelope size: 90mm*80mm;

Filter paper bag: 62.5mm*56mm;

Filling weight: 2-4g(Regarding to different Products)

Tag roll width: 40mm

Tag cutting length: 20mm;

Filter paper roll width: 125mm;

Filter paper cutting length: 56mm;

Envelope roll width: 160mm;

Envelope cutting length: 90mm
