Scope of application:

Granule Packing Machine is suitable for pharmacy,food,household chemicals,plastic products and other special industry and other loose type  granule material.Such as seeds,Chinese Drugs, feeding stuff,medicinal granules,salt,sugar,soup blend,oat,tea,active carbon,washing powder,dryer,etc.

Feature:

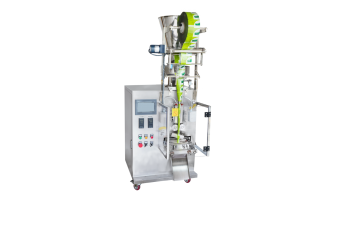

1.     Automatic granule packing machine can finish the process like conveying bag,bag making,filling,weighing,sealing,cutting,counting,lot number,etc.

2.    Bilingual display screen control system,stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.

3.    Step Motor control,this system has the advantage of precise,needless to adjust the other parts.

4.    It has color system controller,so that can get the complete trade mark design.

5.   Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.

Technical Data：

Capacity：30-60bag/min

Measuring Scope：1-80ml (need change volume cup)

Bag Size：（L）40-180、（W）20-100mm

Max Film Width：220mm

Sealing Type：Back seal

Power：1350W

Net Weight：230kg

Voltage：220V、380V/50Hz

Packing Material：paper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.

Overall Size：L800×W800×H1700mm
