I. Introduction:

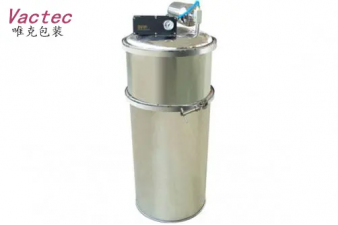

The pneumatic vacuum feeding elevator conveys material by using the high vacuum produced when the compressed air goes through the vacuum generator. It does not require mechanical vacuum pump. It is suitable for fine powders. Vacuum generator generates high vacuum in order to avoid the stratification of the conveyed material and ensure the homogeneity of the mixed material.
II. Technical parameters:
|
Model |
Capacity |
Chamber Volume |
Working Pressure |
Air Comsumption |
|
QVC-1 |
50~300kg/h |
1.1L |
0.4~0.6Mpa |
180NL/min |
|
QVC-2 |
100~700kg/h |
6.0L |
0.4~0.6Mpa |
360NL/min |
|
QVC-3 |
300~1500kg/h |
12.0L |
0.4~0.6Mpa |
720NL/min |
|
QVC-4 |
600~3000kg/h |
42L |
0.4~0.6Mpa |
144NL/min |
|
QVC-5 |
900~6000kg/h |
60L |
0.4~0.6Mpa |
2880NL/min |
1.The packing machines will be wrapping by film firstly and then packed in export standard plywood wooden cases;
2.We can delivery machines by sea,train,air,etc. According to customer's requirement;
3.We will delivery machine from any sea port in China
