I. Introduction:

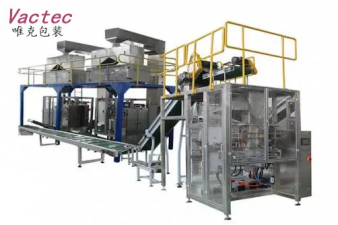

This machine is used for conveying, feeding and filling pouch products in big plastic bags then sealing and cutting automatically.

II. Advantages :

1 This packing unit can realize bag making ,pouch products filling in order ,sealing and cutting,counting,etc automatically

2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .

3 saving manpower ,material and financial inputs reducing production costs .Improving production efficiency .

4 most components adopts international famous brand ,Siemens PLC and touch screen, Omron temperature controller

III. Production process:

For secondary packaging (auto putting the small sachets into big plastic bag):

Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement →   the small sachets will load into the bagging machine →   bagging machine seal and cut the big bag → belt conveyor will take the big bag under the packaging machine.

IV. Technical parameters:

Bag type: pillow bag /gusset bag

Bag material: laminated film/ PE film

Max.outer diameter of reel：Ф600 mm
ID of packaging paper core：Ф75 mm
Max bag width: 535mm

Mini bag width :270mm

Bag length is adjustable

Roll film width:580mm-1100mm
Power source: 380V 60Hz ,3 phase
Compressed air requirement: 0.6 MPa 0.36 M3/min
