I. Introduction:

This machine consist of one set 10 head weigher, one set of Z type bucket elevator ,one set of VFS5000YA5 box type bag packing machine (equipped with one set air valve feeding device), automatically realize functions of weighing, filling, bag-making, air valve feeding, sealing ,date printing, cutting,counting,etc.

II.Complete packing units includes:

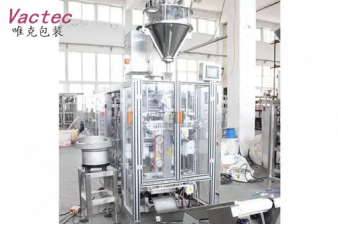

1.VFS5000YA5 box type packing machine:

1.1This machine equips with 4-edges forming & sealing device,film pulling,bag-making,cutting,bottom standup device,code printing,etc.to make box Type bag .OMROM PLC,WEIVIEW Touch Screen，PANASONIC/Schneider servo motor, Sunx Photo Sensor, SMC Air Pneumatic, etc. Stainless Steel for body.

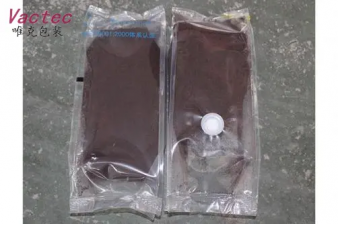

1.2 This machine is equipped with one set air valve feeding device for feeding air valve on bags ,as after coffee packed in bags, will release large gas inside of bags and broken the bags , the air valve is used for solving this problem.

2.ZH multi-head weigher:

2.1Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal;

2.2 Program recovery function can reduce operation failures and support multi-segment weight calibration;

2.3No products auto pause function can improve weighing stability and accuracy;

2.4100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;

2.5 Linear amplitude can be adjusted independently in the running;

2.6Many languages available for global markets.

3.Z type bucket elevator :

Elevating height: 4-6 meter

Capacity: 3-6CBM/hour

Material of bucket:  ABS food grade plastic

Motor power: 1.1kw 380v with Photo electricity

Machine-material: Stainless,steel, plastic

III. Technical Parameters:
