Application:

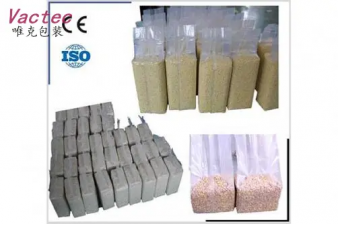

Foods such as peanuts, melon seeds, cashew nuts, dried fruits and other granular goods.

Features:

1.Using Omron PLC centralized control, intelligent control weighing, filling, hexahedral shaping, vacuum pumping, sealing, discharging and conveying the whole process, real-time tracking system working state, friendly man-machine interface, simple operation.

2.Servo motor drive, precise positioning, fast moving speed.

3.Two-sided vacuum bags instead of organ vacuum bags are used for six-sided vacuum packaging, which greatly reduces the packaging cost.

4.Imported pneumatic components are widely used. They are simple in structure, reliable in operation and easy to maintain.

5.Replacement of die is simple, convenient and fast.

6.Reasonable operating space, bagging and sealing only need one man-made.

7.Fault display and online help system.

8.Adopts linear weighing machine, products will be feed by one vibration hopper, through change parameters on touch screen, to vibrate most parts of products at a big amplitude and vibrate left products at a small amplitude ,to keep speed and accuracy.

Working progress:

Manual put products in hopper of linear weigher → Manual feeding premade bag on discharge tube and press “bag-clamping” button → bag is clamped and linear weigher automatic weighing and filling products in bags → Filled bag conveying to vacuum system automatically →Automatic vacuum and conveying out

Main Configuration:

Programmable controller: Siemens, Germany

Button: Siemens ATP

Relay, contactor: Japan Omron

Solenoid valve and cylinder: Taiwan AIRTAC

Photoelectric sensor: Korea AUTOMICS

Technical parameters:

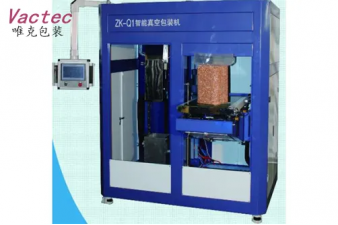

Product model: ZK-Q1

Application range (KG):3-15

Packing speed: 3bags/min

Working humidity: ＜ 90%

Working temperature (℃): 0-40

Packing accuracy : ±3-5pcs of tablets

Power: AC380V three-phase four-wire 50HZ 3KW

Air consumption: 0.4 ~ 0.8Mpa compressed air, 1.72m3 / h
