Automatic Granule Brick bag Vacuum Packing Machine
  • Description
  • Package&shipping
  • Our Service
  • Company Information

I.Introduction:

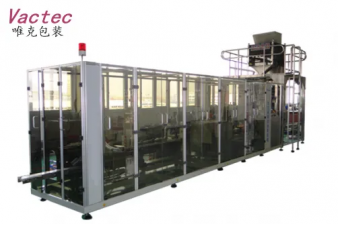

This machine including one set VFS5000F vertical bag making packing and sealing machine .one set CJS2000 linear weighing machine ,One set ZB500N/ZB500N2 vacuum packing machine , one set output conveyor .This machine are widely use for packing granule type products, like coffee bean, rice, yeast powder,seeds,etc .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high ,the finished product is very nice and have a long shelf life.



II.The complete unit includes:

1)CJS2000 linear measuring machine :





Application:



This machine is for granule automatic weighing and filling. With 3 pairs of weighing head, each head consists of one fast supplier and one slow supplier for keeping good filling speed and accuracy.The frame and contact parts be made by 304 S.Steel

Technical information

Weighing head: 3 heads;

Weighing range:500-1000g;

Filling speed: 40-45times/min

Power: AC220V, 1Phase, 50Hz, 2KW

Compressed air: 0.6MPa0.3M3/min


2)VFS5000F vertical bag making packing and sealing machine



Advantage:

²  Machine fully controlled by Siemens or Omron PLC & Touch-Screen

²  Minute capacity can  automatically display on Touch screen

²  Film transport system derived by Panasonic servo motor;

²  horizontal Jaw sealing derived by pneumatic

²  Safe quick change of tube and collar by just pull out the bracket

²  Optoelectronics detect film position on collar to correct film excursion

²  Electrical photo sensor inducting color code to control bag length

²  Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

²  independent temperature adjustment.

²  Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PE  PE/NYLON, aluminum foil based can be run on the machine.

²  Minimum Capacity: depend on product characteristics but nominally 100 grams

²  Weighing accuracy: ±0.2% dependent on products characteristics

3)ZB500N/ZB500N2 Vacuum system

 ZB500N/ZB500N2 Vacuum &bag reshape system

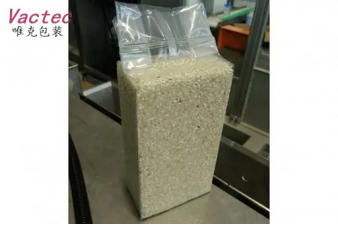

Auto Vibrate, Form, Vacuum & Reseal Brick Bag

Stable working with SIEMENS PLC, Panasonic Servo Drive,


III.Technical prameters:

Model :ZB500N/ZB500N2

Meter products:coffee powder

Packing speed :18-20bags/min for ZB500N single chamber vacuum machine;

38-40bags/min for ZB500N2 double chamber vacuum machine;

Bag dimension :According client bag sample

Machine dimension:8800*3800*4080mm

Power :15.2kw



IV. Configuration List



NO

ITEM

MODEL

QTY

Brand

1

Pneumatic FRL

C1202-10C202-C100

1set

Air Tag

2

PLC

S7-200CPU224

1set

siemens

3

cylinder stator

SC32*50

2set

 AirTAC

4

Cylinder stator

SC63*100

1set

AirTAC

5

Cylinder stator

SC32*15

1set

AirTAC

6

Cylinder stator

SC40*25

1set

AirTAC

7

Cylinder stator

SC25*15

2set

AirTAC

8

solenoid valve

358-015-01-A77

5set

AirTAC

9

solenoid valve

454-915-22-A77

1set

AirTAC

10

Motor

TDY090-60W

4set

Suzhou

11

Servo motor

P50B08050HX

2set

Schneider

12

Touch screen

GP37WB2

1set

Siemens

13

Switch

24/1.5A 5V/5A 15V/1A

2set

Fudan

1.The packing machines will be wrapping by film firstly and then  packed in export standard plywood wooden cases;

2.We can delivery machines by sea,train,air,etc. According to customer's requirement;

3.We will delivery machine from any sea port in China

Efficient Service

Documents

English version manual book and wires connecting drawing will be give at the time of dispatch of machine, we will also offer the documents for custom to clean custom.

Guarantee

The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.

Service

We can arrange and send engineer abroad for helping customer install and test and learn the machines, we also send necessary spare parts in first time.

Hefei Vactec Packaging Technology Co., Ltd is located in the famous science and education city-Hefei. Our company is a high-tech company specialized in the R&D, production ,sales and after-sales service automatic packing machines and relative auxiliary equipments in China.



Vactec sets up six professional divisions: vertical packaging machinery, bag-feeding packaging machine, automatic weighing machine, vacuum packaging machine, inspection machinery and filling machinery. The machines are widely used in chemical, building material, food ,beverage, beer and automatic logistic industries.



Through these years development, Vactec various technology are improving daily. Especially the technology of heavy bag packaging machine and secondary packaging machine is the domestic original technology, its products stay at the world leading level and has signed global purchase strategic plan with several world top 500 enterprises, has provided nearly one hundred sets of packaging solutions and its products are used in various sectors. Its typical customers are: Unilever (OMO), P & G, Charoen Pokphand Group, Liby Group, Industrias Alimenticias Gustossi Srl Group, UCI Indonesia salt company, Yihai Grain and Oil, COFCO, Dongfang Yuhong Technology Co., Ltd., Taetee Group, Sinopec Baling Branch, Zhengzhou Sanquan Foods, Shuanghui Co., Ltd., etc.
